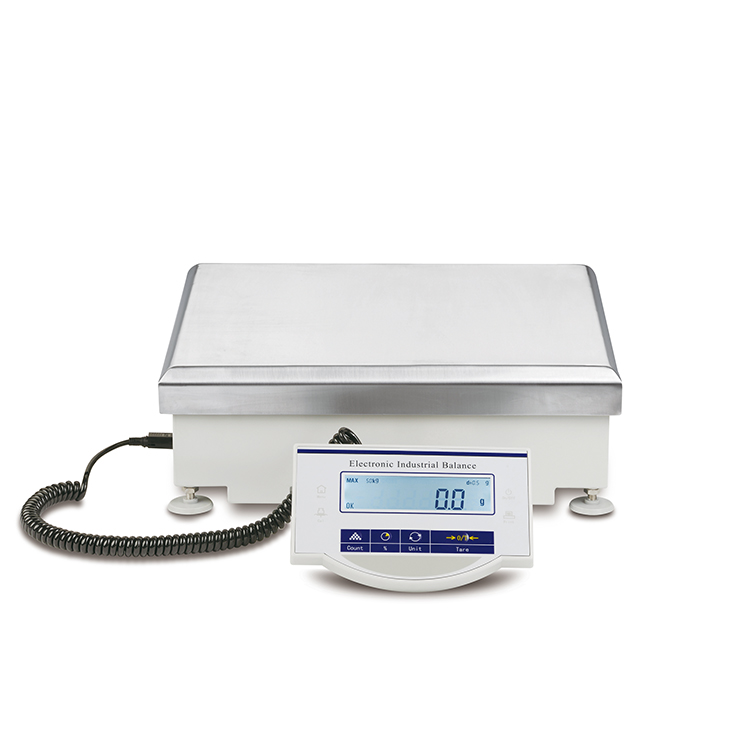

Platform Scale QL150K

Max.Capacity:150kg;
Readability:1g;
Platform Size:810mm×610mm;



Application
Basic weighing;
piece weighing;
percent weighing;
check weight;

Category:

Description

QL150K platform scale is an industrial scale with simple operation, convenient maintenance, fast weighing speed and high weighing accuracy. It is mainly used in industrial measurement, special metal alloys, special parts, production ingredients and cast iron weight inspection and other industries.



Feature
1、High-precision and high-sensitivity humidity sensors and temperature sensors reduce the impact of environmental humidity and temperature changes on the platform scale, effectively ensuring the stability and accuracy of weighing.
2、The stainless steel weighing pan is anti-leakage, anti-static and anti-corrosion, which expands the application scenarios of the platform and enables the platform scale to be used normally in wet and dirty conditions without being easily damaged.
3、The display screen is separated from the platform scale. You can place it anywhere, or you can use an optional weighing pole to fix the display screen, ensuring that you can read the weighing data at the best angle and fastest speed.
4、The platform scale can be connected to computer or other devices via the ES232 data interface to transmit the weighing data.



Application
Basic weighing;
Piece weighing;
Percent weighing;
Check weight;

Specification

Max.Capacity 150kg
Readability 1g
Repeatability ±2g
Linear Error ±2g
Operating Temperature Range 13℃~25℃
Operating Humidity Range 10%RH~70%RH
Response Time (Average) 2.5s
Display Size 185mm×100mm
Weighing Pan Size 810mm×610mm
Dimensions 810mm×610mm×335mm
Power on warm-up time 30-60min
DC Adapter Input:220V AC/50HZ;Output:7.5V DC/600mA
Accuracy Level
