Description
10ml sample bottle
Small volume ensures smaller dead volume and background moisture value. Short time required to dry the sample bottle, effectively improving test efficiency.
Hollow needle injection and gas delivery pipeline with heating function
Ensure that water vapor will not condense into water in the delivery pipeline, improving the accuracy and repeatability of the instrument.
Maximum temperature 300℃
Can meet the measurement needs of most products. Air flow rate: 0-100ml, suitable for products with various moisture release rates.
Two bottles of molecular sieve: can effectively adsorb moisture in high-purity nitrogen and reduce the impact of moisture in high-purity nitrogen on the test.
The software system can detect moisture in the environment in real time, accurately deduct drift, and reduce the impact of the environment. The real-time dynamic impedance method is used to determine the test endpoint, and the measurement results are more accurate.
Built-in thermal printer, the test results will be automatically printed after the test is completed. After the test is completed, the instrument will automatically store the test data, and can store up to 500 data. There is an RS232 interface, which can be connected to a computer to transmit data.
Specification
| Test Principle | Karl Fischer Coulomb method (electrolysis method) |
| Measuring speed | 2.8mg H₂O /min（Max.） |
| Measuring range | 1μg-300mg |
| Measurement Accuracy | 3μg (10μg–100μg H₂O); ≤0.3% (water content> 100μg H₂O); (Excluding injection errors) |
| Measurement Resolution | 0.1μg H₂O |
| Relative Water Content Range | 1ppm-100% |
| Electrolytic Current | 0-500mA, adjustablle |
| Moisture Concentration Resolution | 0.001ppm |
| Storing data | 500pcs |

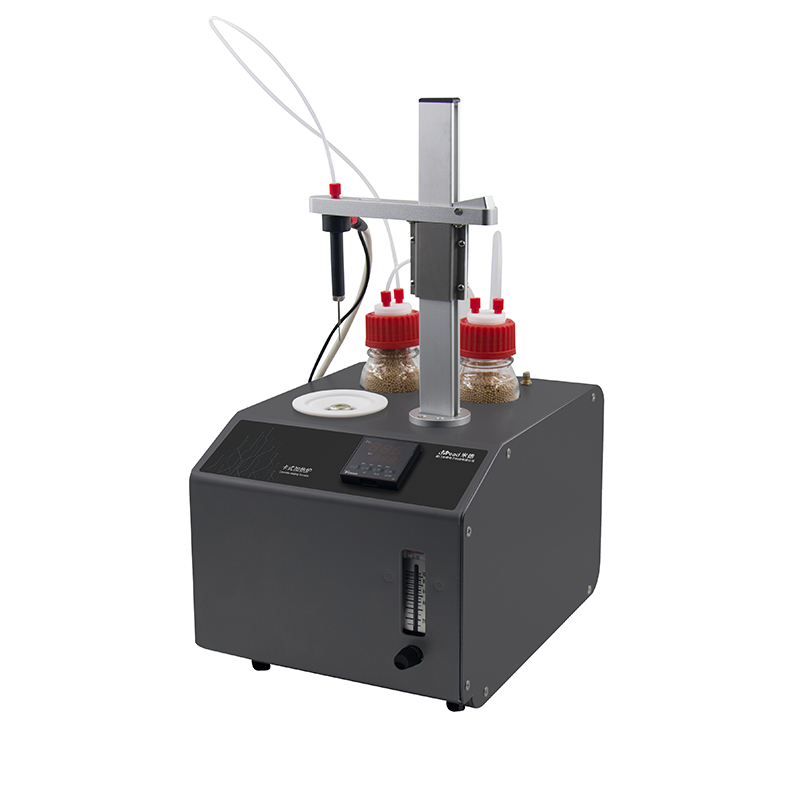

| KF Drying Oven | |
| Temperature range | 40-300℃ |
| Heating rate | 30℃/min(40-200℃)； 10℃/min(200-300℃) |
| Cooling rate | 10℃/min |
| Flow range | 0-100ml/min (0.1Mpa),（0-300ml/min can also be selected） |
| Flow accuracy | 1ml/min |
| Ambient Temperature | 5-40℃ |
| Environment Humidity | <65%, the drier the humidity, the more stable the instrument |
