Description
Water is ubiquitous and critical to controlling product texture, quality safety and other characteristics. Therefore, many manufacturers – from food to lumber and more – need to know the moisture content of raw materials and products. Additionally, many manufacturers, especially in the food, pharmaceutical and cannabis industries, are mandated by government regulations to measure moisture content.
The traditional method of measurement is the oven method. First weigh and record the weight of the sample, then put the sample into the oven for several hours of high temperature drying, and finally weigh the dried sample to calculate the moisture content of the product. Although the oven method can provide accurate moisture content data, its measurement effect is too low to meet the needs of rapid measurement for timely production adjustments.

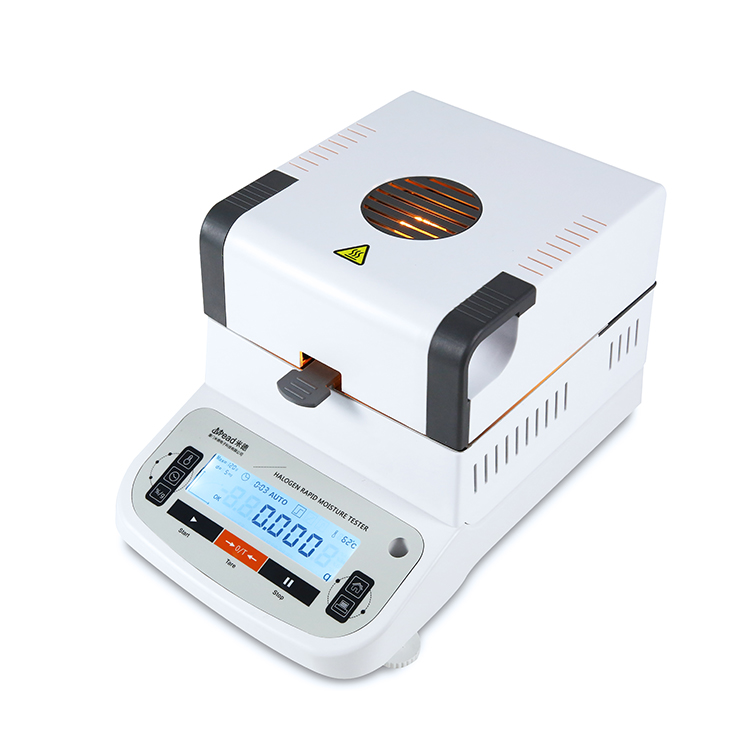

MD-610A moisture analyzer not only provides accurate and reliable measurement results, but also greatly improves the measurement efficiency, which can be completed within 5 minutes for most products. It is one of the best choices for factories and research institutions to measure moisture content.
Moisture analyzer, also known as moisture balance or moisture meter, consists of weighing system and heating system. Moisture analyzer works according to the thermo-gravimetric principle, also call the ‘Loss on Drying’ principle. After adding a sample to the moisture analyzer, the instrument will record the starting weight of the sample. Then, the halogen lamp will heat and dry the sample. During the drying process, the weighing system continuously records the weight of the sample. When the sample no longer loses weight, the instrument will stop drying and calculate the moisture content based on the total loss in weight.
MD-610A moisture analyzer is an ideal choice for fast and accurate measurement of moisture content. It can measure the moisture content of various types of samples, such as granules, powders, flakes, pastes, etc.
Technical Specifications
- Principle：Loss on drying；
- Capacity：120g；
- Weighing Accuracy：005g；
- Readability：01%；
- Load Cell：Strain sensor；
- Calibration Method：External weight calibration；

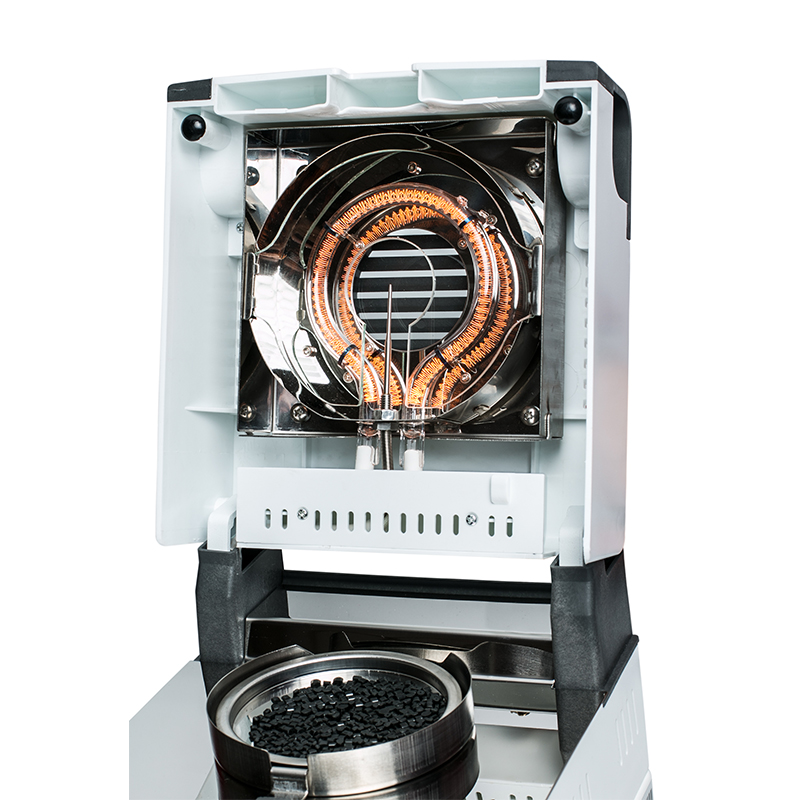

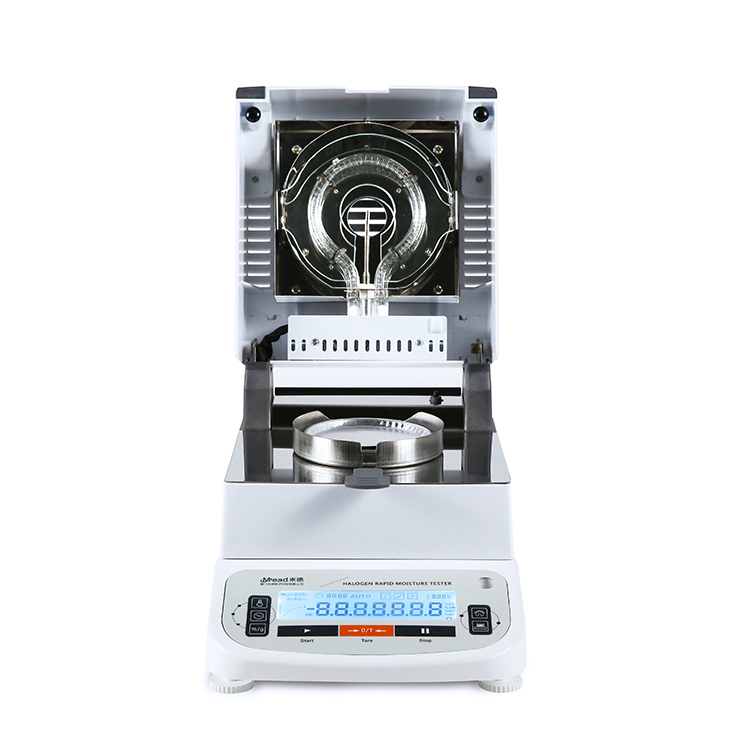

- Heating Method：Ring halogen lamp heating；
- Heating Power：500W；
- Heating Temperature Range：40℃-160℃；
- Temperature Readability：1℃；
- Temperature Sensor：High precision ultrafine platinum rhodium temperature sensor；
- Results Show：Moisture content, solid content, weight after drying, real-time temperature, graph；
- Shutdown Mode：Automatic, Timing, Manual；
- Setting Time：0～99 minutes (interval 1 minute);
- Sample Pan：Φ102mm stainless steel sample pan. You can also choose a disposable aluminum plate；

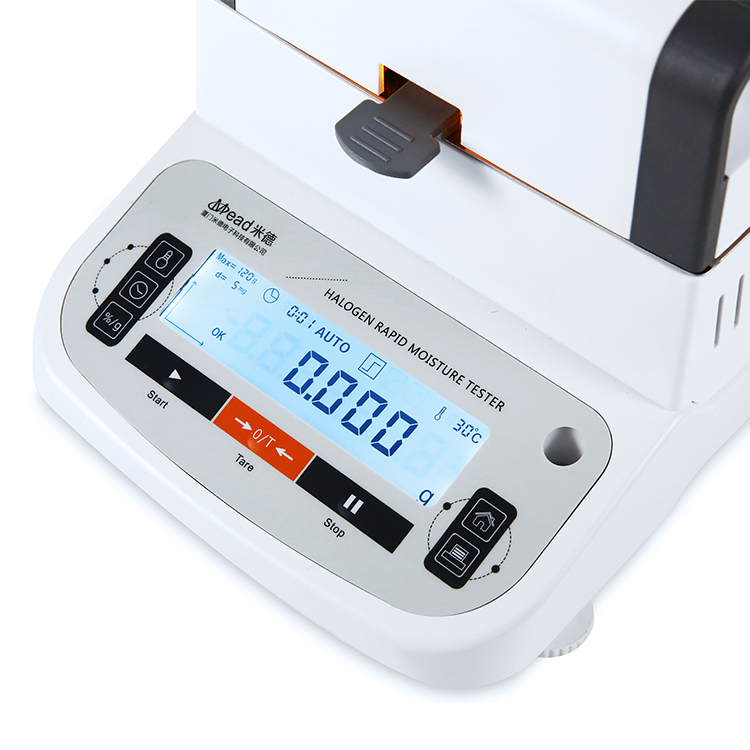

- Display：LCD liquid crystal display；
- Communication Interface：Thermal printing (directly print out the moisture content and solid content); Standard RS232 communication interface, which can be connected to printers, PCs and other peripheral devices;
- Voltage：220V，50Hz / 110V，60Hz；
- Size：310*200*205mm；
- W.：3.5 kg；
If you have any questions, please contact us. Maybe we can provide you with some help in communication！
