Description

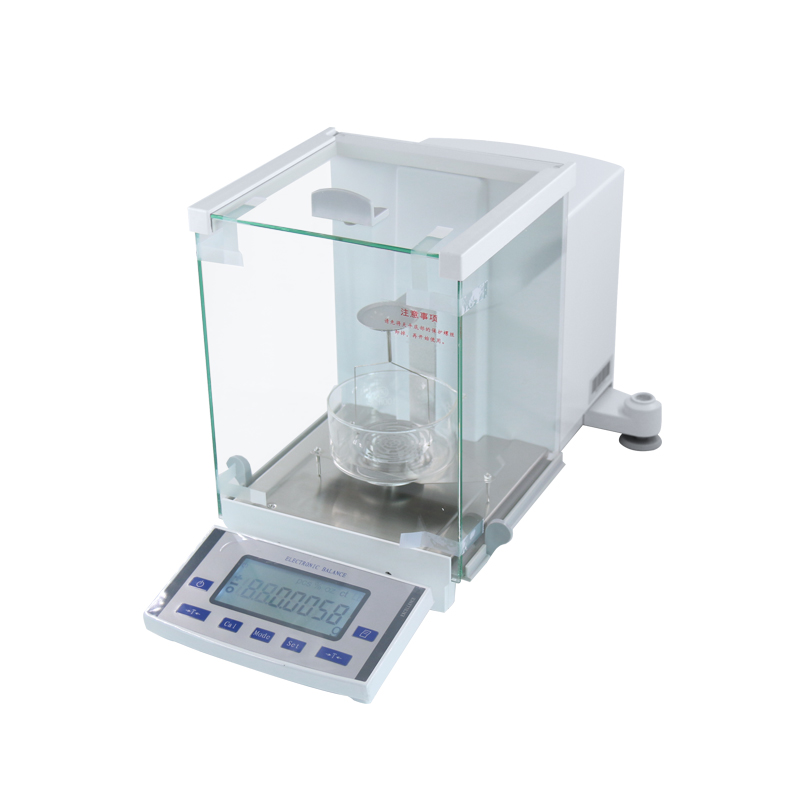

DX-100E density balance is an instrument specifically designed to accurately measure the density of solids.
The density balance uses Archimedes’ principle to directly calculate density by determining the mass of an object in air and the mass immersed in a fluid. It helps understand the composition and purity of a material, which is critical for identifying material properties, verifying specifications, and ensuring compliance with industry standards.
Feature
1、Simple operation, can quickly measure the density of the sample;
2、Use electromagnetic force sensor for weight weighing, high weighing accuracy, can ensure the accuracy of the test results;
3、Bright display screen for easy reading of values;
4、Windshield room can avoid airflow interference during weighing, ensuring reliable weighing results. Sliding doors are provided on the top and both sides for easy access to the weighing area from multiple directions.
5、RS-232 data output, can be connected to a PC or printer.
Specification
| Max Capacity | 120g |
| Weight Accuracy | 0.0001g |
| Density Resolution | 0.0001g/cm³ |
| Measurement Types | particles, sheets, floating |
| Measuring Time | About 10s |
| Parameter Setting | Water temperature setting, measuring medium density setting |
| Windshield | Fully transparent glass windshield, the sample is 100% visible |
| Communication Interface | RS232 standard communication interface, which can be connected to printers, PCs and other peripheral devices |
| Voltage | AC100-240V-50/60HZ DC 7.5V 600mA |
| Measuring Water Sink | 165*115*85mm |
| Packaging Size | 450*240*460mm |
| Product Size | 270*270*270mm |
| Weight | 7.5kg |
| Standard Accessories | ①Main unit ②Sink ③Measuring table ④Tweezers ⑤Instruction manual ⑥weight ⑦Dust cover ⑧Anti-floating frame ⑨ Power supply |
